EPOMAKER TIDE 49 BLACK

Description

The Tide49 combines a gasket-mounted FR4 plate and five-layer sound dampening for a deep, thocky typing experience, with hot-swappable switches enabling customizable tactile feedback in a compact 40% design.

-40% Ultra-Compact Gasket Design & CNC Aluminum

-Tri-Mode (2.4G/Bluetooth/Wired) & 3000mAh Battery

-South-Facing RGB & Minimalist Aesthetic

-VIA Programmable & Hot-Swappable PCB

-5-Layer Sound Dampening& N-Key Rollover

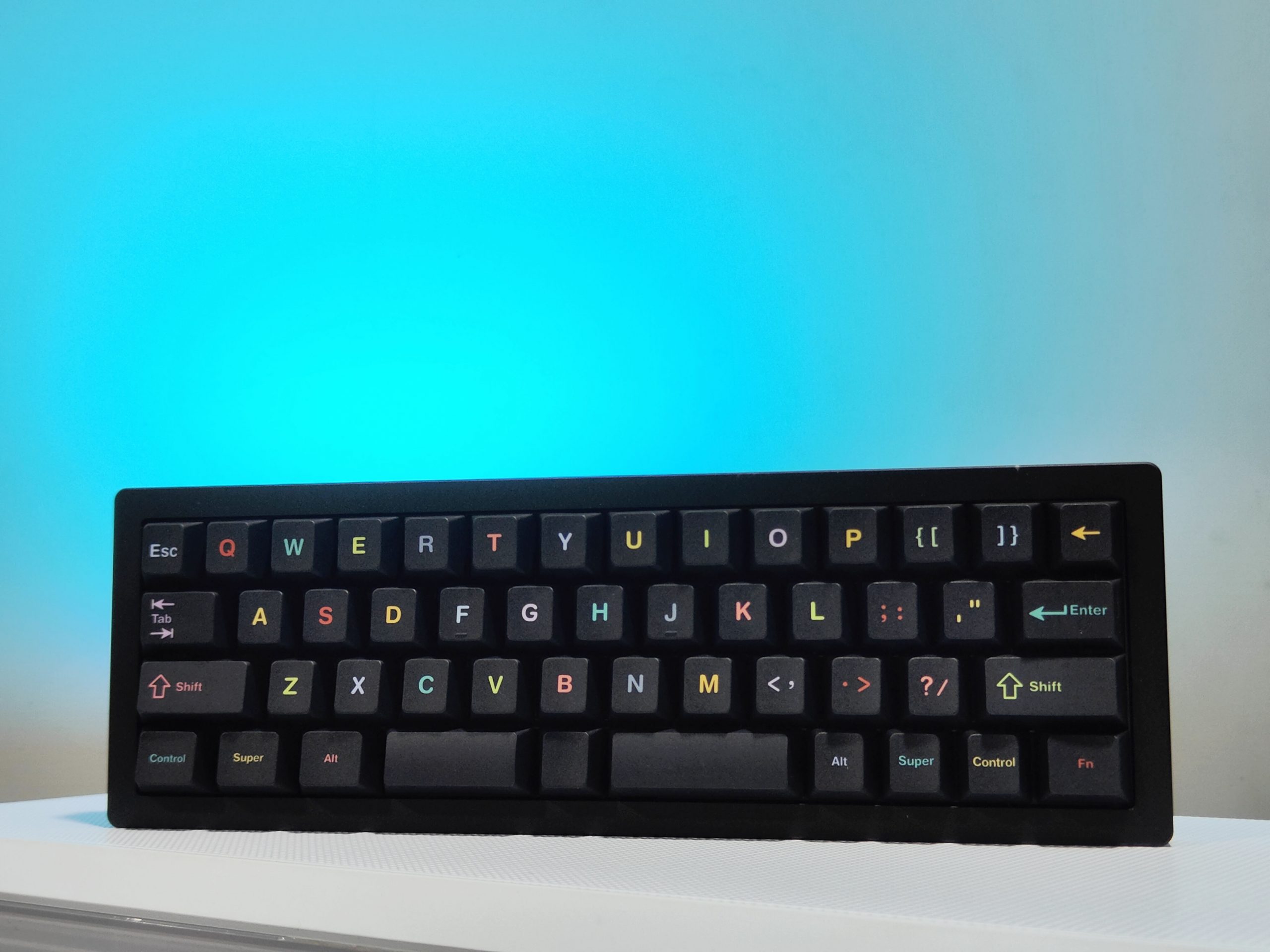

Ultra-compact 40% Layout

The Epomaker Tide49 features an ultra-compact 40% layout with 49 keys, making it an excellent choice for those seeking to maximize desk space while retaining essential functionality.

Full Key Hotswappable PCB

Equipped with a full key Hotswappable PCB, the Tide49 allows you to easily change switches without soldering. Personalize your tactile experience by swapping out switches to find the perfect feel for your typing style.

Triple-mode Connectivity with 3000mAh Battery

With triple modes of connectivity and a 3000mAh battery, the Tide49 ensures reliable connectivity, whether you prefer wired or wireless options. Switch effortlessly between devices to suit your daily routines.

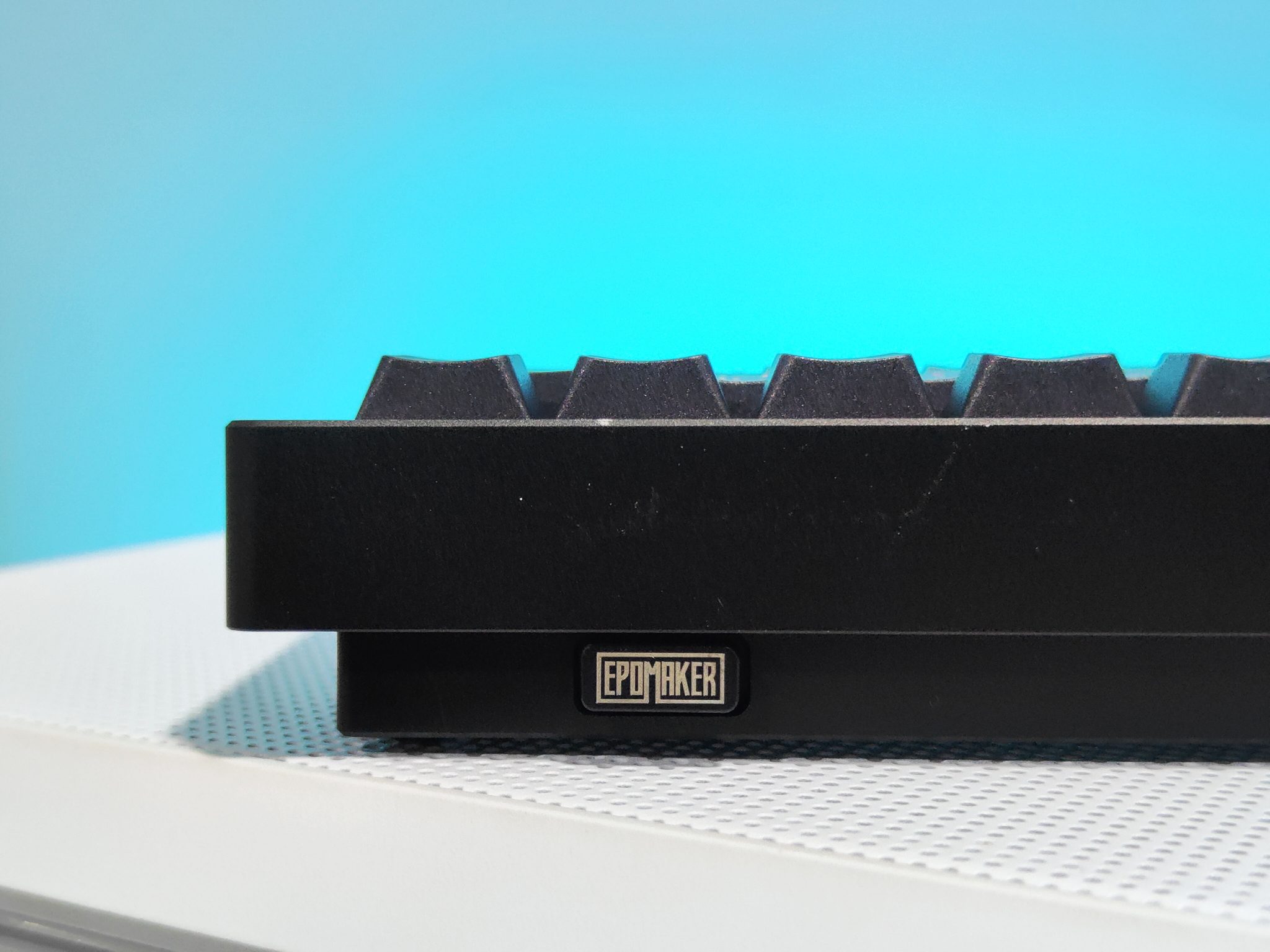

CNC Anodized 6063 Aluminum Case

The keyboard features a CNC anodized 6063 aluminum case, providing both durability and a contemporary style. This quality construction ensures that the keyboard can withstand everyday use while complementing your workspace aesthetics.

Gasket Structure with FR4 Plate

Thanks to the gasket structure with an FR4 plate, the Tide49 offers a more comfortable typing experience while minimizing noise levels. The five-layer sound-dampening material further enhances this quality, making it suitable for quiet environments.

VIA Support

Like the other Tide Series models, the Tide49 supports VIA programmability, allowing users to fully customize keyboard settings to meet their specific needs. Create macros and key remaps to enhance efficiency and streamline your workflow.

Advanced Sound Dampening

The Tide49 incorporates a five-layer sound dampening system consisting of Poron sandwich foam, IXPE switch pad, PET sound-improving film, Poron case foam, and PET insulation pad. This combination effectively reduces unwanted hollow sounds and mitigates case ping, resulting in a deeper, “thocky” sound signature for an enhanced auditory experience.

Specifications:

Brand: EPOMAKER

Model: Tide49

Layout: 40% ANSI US Layout

Number of Keys: 49 Keys

Battery: 3000mAh

Battery Life: 10 hours with Backlight on, and 110 hours with Backlight off.

Connectivity: Type-C Cable, 2.4GHz, Bluetooth 5.0

Compatibility: Mac/WIN/Linux

Front Height: 21.8mm

Back Height: 29.4mm

Typing Angle: around 5 degree

Case Material: 6063 Aluminium

Plate Material: FR4

PCB Thickness: 1.2mm

Flex-Cut: Flex-Cut

Stabilizers: Steel Plate Stabilizer. (Not Compatible with Screw-in Stabilizer)

Mounting Structure: Gasket-Mount

Sound Dampening: 5 layers: Sandwich Pad, IXPE Switch Pad, PET Sound-Enhancement pad, Poron case foam, and PET insulation pad.

Switch: 5-pin Pre-Lubed Mechanical Switch

Hot swappable: Yes, witch 3/5-pin Mechanical Switches

RGB: South-Facing, Per-Key RGB

Polling Rate: 1000Hz (USB, 2.4Ghz), 250Hz (Bluetooth 5.0)

Latency: 2ms (USB), 10ms (2.4Ghz wireless), 20ms (Bluetooth 5.0)

Anti-Ghosting: N-Key Rollover

Keyboard Dimensions: 283*95*38.4mm

Keyboard Weight: around 1kg

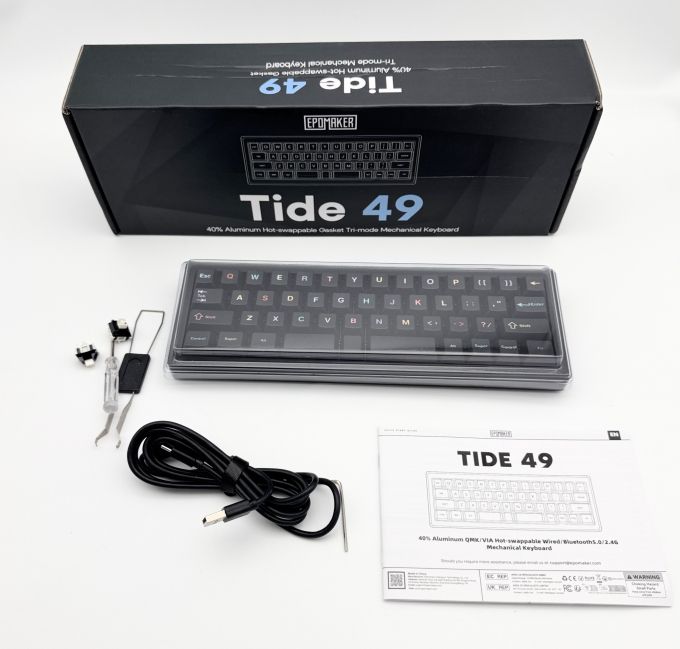

Inside the Box:

-Keyboard

-Manual

-Keycap Puller

-2.4G Dongle

-Type-C Cable

-Extra Switches x 2

Specifications for Epomaker Zebra Switch:

Switch Type: 5-pin Linear, Factory Lubed

Trigger Force: 40±3 gf

Bottom-out Force: 45±5 gf

Pre-Travel: 1.8±0.3mm

Total Travel: 3.8mm

Material: POM (Stem), PC (Top Case), Nylon (Bottom Case)

Life spans: 5,000,000
